How do I replace the button cover cap for my LCD screen?

ower Button Plastic Top Cap replacement
For all Voltbike models

Tools/ parts required:

Small Phillips screwdriver
2.5mm hex too

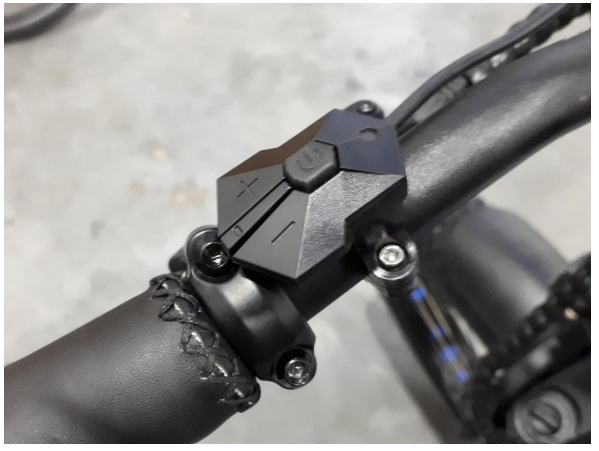

 Power ‘off’ the bike and remove the battery. Use a 2.5mm hex tool to uninstall the power button from the handlebar.

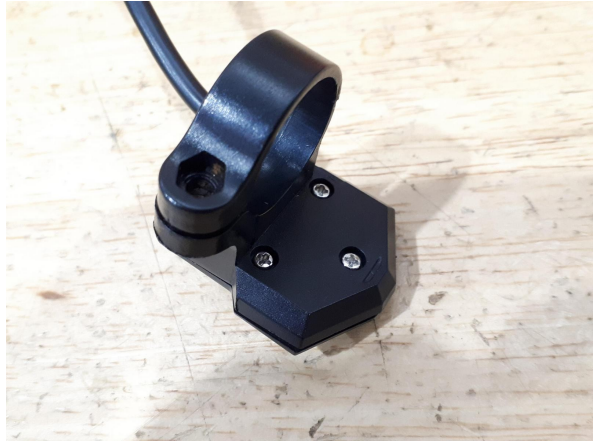

Use a small Phillips screwdriver to loosen and remove the plastic top cap mounting
screws on the bottom of the unit.

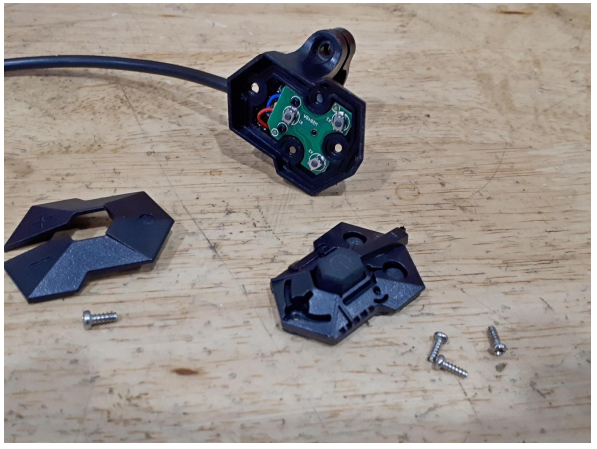

With all four screws removed, carefully replace the plastic top cap and rubber seal boot as

needed.

Ensure the new rubber seal boot and plastic cap are seated properly. Reinstall the four

screws. Check the screws are snug, but do not over-tighten or strip the threads. Remount the
power button on the handlebar. Install the battery and test ride.
